Mouse Move

Description​

This activity automates the Mouse Movements.

note

This activity requires an active display and an unlocked user session to simulate interactions with UI components successfully. For more detailed information, please refer to the relevant section in the Desktop Automation Notes.

Properties​

Input​

  • Delay After – Delay time, in milliseconds, after executing the activity. By default, it is set to 300 milliseconds.

  • Delay Before – Delay time, in milliseconds, before the activity begins execution. By default, it is set to 200 milliseconds.

  • Window Instance - Holds the window instance identified through Window Selector. You can also type in the window instance for automation.

  • Search Parameters – Holds the information of the UI element identified through Element Selector.

  • X Adjustment – Horizontal (X) adjustment relative to the element position

  • Y Adjustment – Vertical (Y) adjustment relative to the element position

Misc​

  • DisplayName – The display name of the activity.

  • Private – If selected, the variables and argument values will no longer be logged at the Verbose level.

Optional​

  • Continue On Error – It Specifies whether the automation should continue even when the activity throws an error. If True, the activity continues without throwing any exceptions. If False, the activity throws an exception. The default value is False.
note

If this activity is inside the Try-Catch block, and the value of this property is True, no error would be caught.

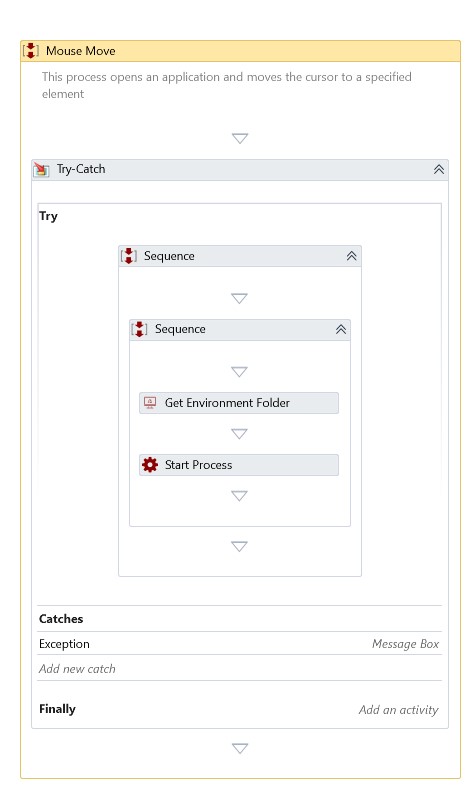

Example​

Download Example

![Mouse Move](./.assets/images/mousemove_example.jpg
